 | SMT NOZZLEThe SMT nozzle is installed on the patch head and used to absorb the patch spare parts that are mounted on the circuit board.Special chuk type gripper nozzle. Hitachi SMT vacuum nozzle HG22C HG24C HG32C HG52C HG82C HV14C HA04 HA05 HA09 HB03 HB04 HV03 HV31 PV01 PV02 VF01 VF02. NPM CM402 602 ceramic nozzle N610038265AA N610040786AA N610119480AB N610119484AB N610119485AB N610098969AA 100N |
 | SMT FEEDERFeeder in the SMT industry is feeding equipment.Its function is to install SMD components on the feeder.And provides components for the high-speed Mount placement machine.For example Hitachi GXH-1S-Yamaha Sigma-G5S ASSY_GD-38080 KYD-MC100-10 GD18080 GD-38080-B ASSY_GD-12162 KYD-MC200-10 GD12162-B GD12162-C GD12162-D GD12160 ASSY_GD-24322C KYD-MC400-10 ASSY_GD-44562B KYD-MC600-10 ASSY_GT-24322C KYD-MC400-00 ASSY_GT-44562B KYD-MC600-00 |

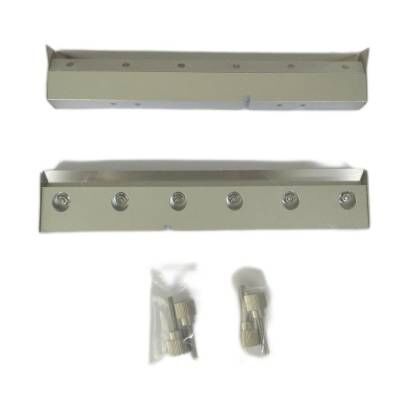

 | SMT solder printer SqueegeeWhen printing PCB boards with SMT solder paste. One of the processes is to use a scraper to squeeze the solder paste on the solder paste. So as to transfer the solder paste from the stencil to the PCB board. The squeegee system cable crimp is the most complex motion mechanism on the printing press including the scraping cutter fixing mechanism the squeegee transmission control system. N610129978AA 270mm N610118455AA 370mm |
 | Pick and Place machineAlso known as “mounter”Surface Mount System in the SMT production line.It is configured after the dispenser or screen printer.And the surface is mounted by moving the placement head.A device in which components are accurately placed on PCB pads.Divided into manual and automatic.The automatic placement machine is a device used to achieve high-speed and high-precision automatic pick and place of components.And has developed towards a multi-functional flexible connection and modularization. Brand like SONY Assembleon Siemens Panasonic FUJI YAMAHA JUKI Hanwha SAMSUNG Philips UNIVERSAL Hitachi GXH... |
 | Axial-Radial machineThe automatic insert machine is a machine that automatically installs the tape electronic components on the printed circuit board according to the program.The traditional electronics assembly industry relies mainly on workers to insert electronic components onto circuit boards. Since the mass production of machines, the speed of manual insertion is slow.And the defects of poor workmanship are exposed. Using the axial or radial machine to automatically install the electronic originals on the circuit board can save labor costs and improve the level of plug-in craftsmanship. |
 | Peripheral SMT component assist machinePeripheral equipment accessories components device: Noozle cleaner solder paste mixer SMT SMD components automatic counter machine counting equipment, SMD axial lead cutter Radial insertion components forming cutter. Side PCB separator cutting equipment Offline cutting separator router machine PCB board vacuum packer packing Electronic SMD components ESD dry cabinet storage rack ozone generator sterilization air cleaner Stencil Ultrasonic Cleaner Small Metal Tools Ultrasonic washing |
 | Solder paste stencil printerThe solder paste stencil printing machine is generally composed of plates.Solder paste embossing circuit board transmission and other mechanisms.80% of SMT soldering defect rate comes from printing, and 70% of poor printing comes from poor solder paste stirring.For example. Poor solder paste flux and solder powder are not uniform enough and cause poor soldering.Bad solder paste is not viscous enough and tin powder flux components are volatilized and which leads to easy material drop or device offset during mounting.The solder paste contains air and there are tin explosions and sand holes during soldering. |
 | Printer screen Paper Cleaning wipe rollSMT automatic wiping paper roller fabric wipe SMT dust-free roll cleaning.Using natural wood pulp and polyester fiber as raw materials, it is processed by a unique spunlace method to form a unique wood pulp-polyester double-layer structure.Divided into paper tube and plastic tube core.The tubes used in different printing models are either slotted or not slotted at both ends.Tube PP 100%-N510068906AA PAPER CLEANING Width 370MM and length 15M V20 MEDIUM |
 | SMT SMD splice tapes toolsSMT splicing tape is divided into single double anti-static ESD automatic splicing tape splicing machine. Sizes are 8mm 12mm 16mm 24mm 32mm 44mm 56mm 72mm... According to the size of the feeder. Generally used in conjunction with splicing tool and splicing copper clips single and bilateral holes are positioned. The role of Panasonic’s black splicing belt is to avoid material waste to avoid the material being too short to be used on the machine and discarded.Reduce the mechanical wear and tear of the machine feeder reduce the frequent stop and start of the machine avoid the frequent pulling and other actions of the feeder and prolong the service life of the feeder. |
 | Feeder trolley storage cartSMT Feeder trolley Storage cart with SMD component pallet used in the turnover and placement of FEEDER in SMT production line.The product materials are all made of stainless steel and aluminum profiles.Feeder trolley storage cart can be divided into single-layer and double-layer according to the model and requirements.The number of feeders on each floor is:30-50 pcs per layer with Two layers.Depending on the modelcan be customized.General specification of Feeder cart:600*800*1100mm~860*600*1200mm.Optional cart for Fuji Yamaha Samsung Sanyo Sony Panasonic Universal futurity Philips Siemens JUKI I-pulse.. |
 | SMT Maintain Lubrication Grease Oil Lubricating grease a thick grease-like semi-solid.It is used in the friction part of the machine to lubricate and seal. Also used on metal surfaces to fill voids and prevent rust. It is mainly composed of mineral oil or synthetic lubricating oil and thickener. We supply NSK NSL NS7 PS2 THK AFE-CA AFF SUMITEC 353 100g LUBRICATION DAPHNE EPONEX GREASE No.1-2-3 and many more. General-purpose lithium-based grease as specified in its standard temperature -20℃ to 120℃. Water pollution the loss of water leaching is not more than 10%. Indicating that it can withstand water washing.The anti-corrosion property is level 1. That is it can prevent rust under fresh water conditions. |
 | SMT Conveyor BeltSMT line of placement machine and solder paste printer commonly use internal grinding toothed belt steel wire T-shaped track belt.Head and motor and X-axis Y-axis RN-axis timing belt.Inlet and outboard anti-static plane transmission belt. Box timing conveyor belt.Vacuum pump V-belt.Including anti-static and non-static.Generally colors are green and black ESD belts.Such as N510061360AA-MTNK002623AA Polyurethane FLAT BELT RUBBER 5.5MM N510061361AA-MTNK002625AA 5.5MM N510060975AA-MTNK002598AA 4.5MM N510060980AA-MTNK002611AA 4.5MM N510060976AA-MTNK002602AA 4.5MM N510063692AA-MTNK002607AA 4.5MM |
 | SMT spare partsPeripheral equipment accessories parts. Filters like solvent oil air residue filter element VBLF-02 hitachi for SPG sprinter. Nozzle cleaner solder paste mixer SMT SMD components automatic counter machine counting equipment SMD axial lead cutter Radial insertion components forming cutter Side PCB separator cutting equipment Offline cutting separator router machine PCB board vacuum packer packing Electronic SMD components ESD dry cabinet storage rack ozone generator sterilization air cleaner and heating oven for humidity treatment components |
