Main Problems During Depaneling

1. Insufficient Clearance Between Lower Blade and Table

The gap between the lower straight blade and the machine table is too small.

Due to the tall components mounted on the PCBA, the current semi-automatic V-CUT depaneling machine cannot process the board safely.

2. Dense Components and Solder Joints

The PCBA contains densely populated components and solder joints.

During depaneling, improper operation can easily cause:

• Solder cracking
• Component damage
• Dropped components
• PCB stress damage

3. Large Panel Size Makes Operation Difficult

The customer’s PCB panel size is relatively large:

• 380 × 2000 Mm
• Thickness up to 3.2 Mm

This makes both automatic and semi-automatic depaneling machines more difficult to operate efficiently for each panel.

Types of PCB Depaneling Machines on the Market

Currently, there are three main types of Desktop Mini table PCB depaneling machines:

Solutions We Tried

We recommended:

• Fully automatic router depaneling machine
• Semi-automatic V-CUT depaneling machine

Aber, the customer provided the following feedback:

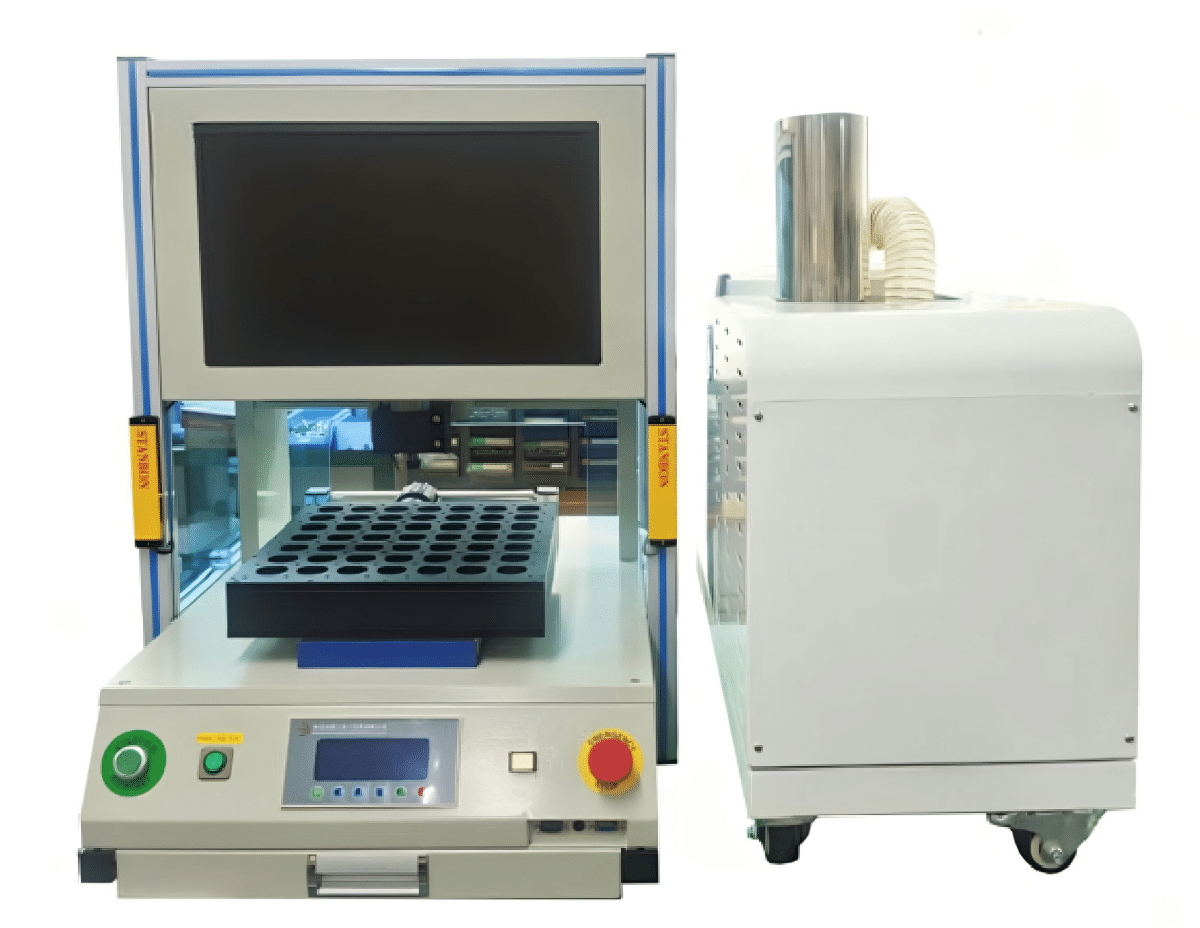

Fully Automatic Router Machine

• Machine size is too large
• Requires too much factory space
• High equipment cost

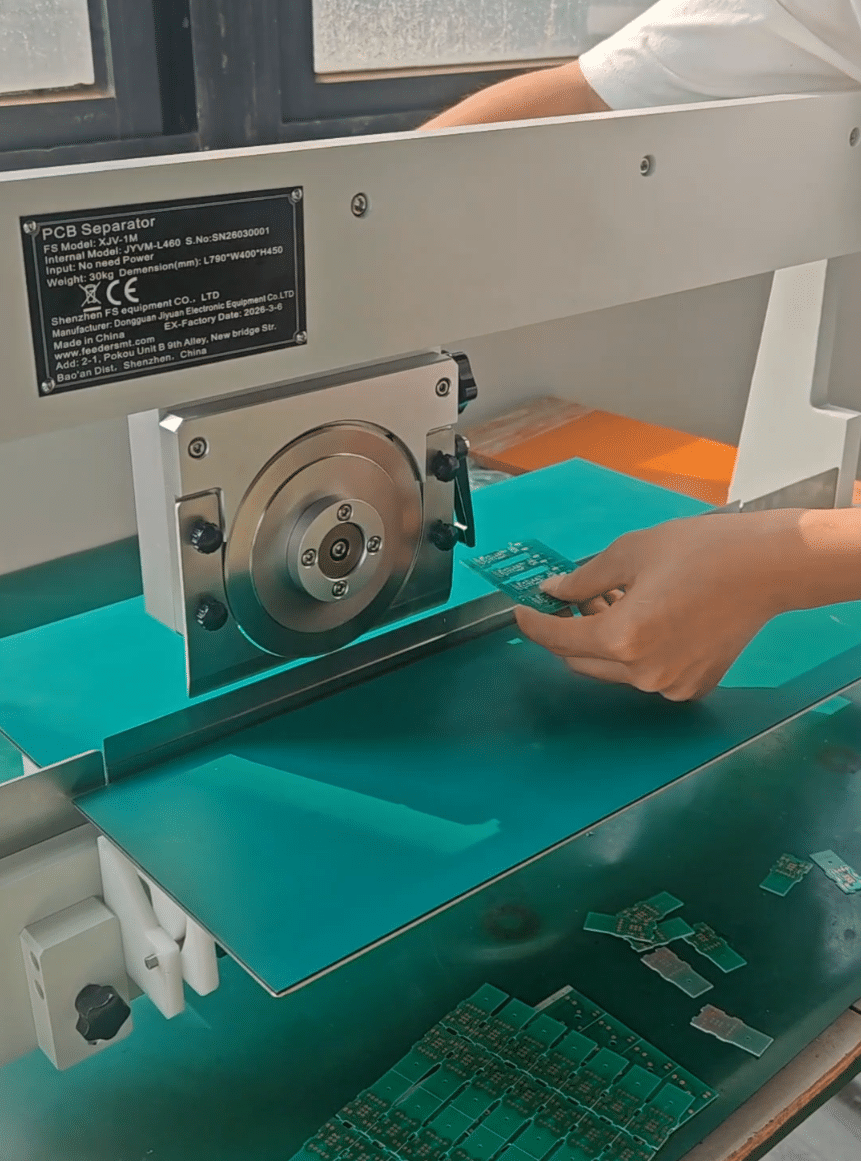

Semi-Automatic V-CUT Machine

The customer already uses this type of machine.

Aber, because of:

• Special PCB dimensions
• Tall components
• Dense assembly layout

The depaneling damage rate remained high.

Final Solution Chosen by the Customer

After comparing different depaneling methods, the customer finally selected a:

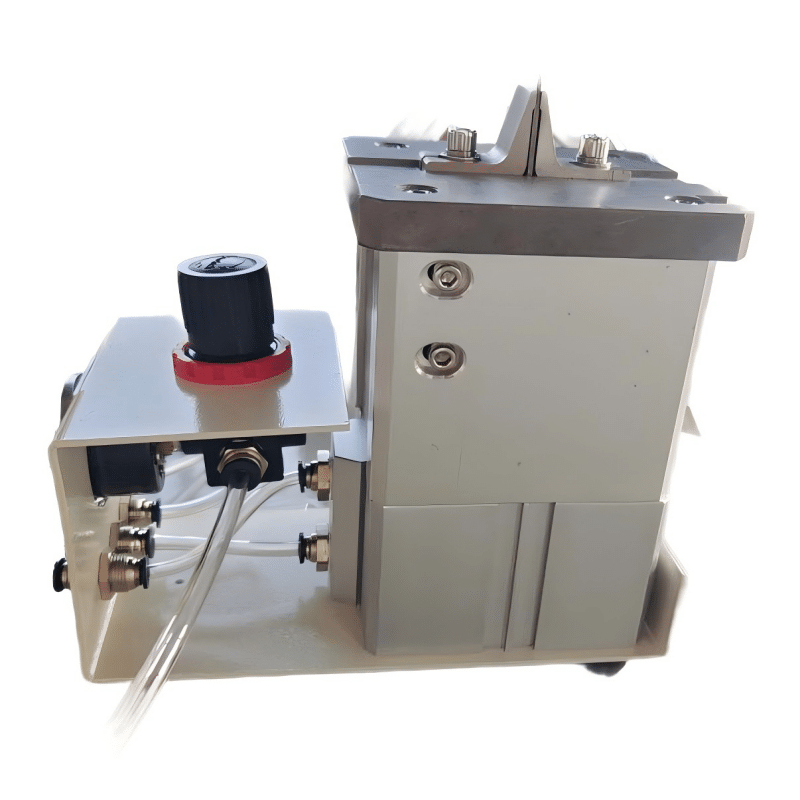

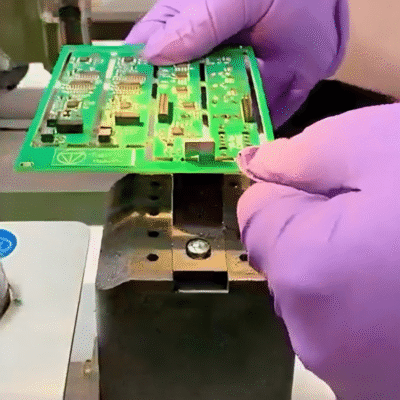

Manual PCB Depaneling Machine

Their main priority was:

✅ Protecting PCB components
✅ Reducing solder cracking
✅ Lowering depaneling stress
✅ Improving safety for high-profile components

Common PCB Depaneling Problems

Before choosing PCB separator cutting machine and we should be careful following.

1. PCB Structural Damage Problems

Problem	Beschreibung
PCB Cracking	Excessive stress during depaneling may crack the PCB substrate or copper traces
PCB Delamination	Internal PCB layers separate because of stress or thermal expansion
Burrs and Rough Edges	Poor blade alignment or incorrect V-CUT depth causes rough board edges
Copper Trace Damage	PCB routing or V-CUT stress may damage nearby copper traces

---

2. Equipment & Process Accuracy Problems

Problem	Beschreibung
Blade Misalignment	Upper and lower blades are not aligned correctly
Cutting Offset	Depaneling path deviates from the V-CUT line
Difficult Board Separation	Residual PCB connection is too thick after V-CUT
Component Damage	Tall or sensitive components collide with the blade or table
Solder Joint Cracking	Mechanical stress damages solder joints during separation
Machine Mechanical Failure	Blade wear, sensor issues, or unstable movement affect depaneling quality

---

Schlussfolgerung

Choosing the right PCB depaneling machine depends heavily on:

• Leiterplattengröße
• Component height
• Component density
• Required production efficiency
• Stress protection requirements

For this customer, protecting sensitive components was more important than automation speed, which is why the manual depaneling machine became the best option.

What challenges are you facing during PCB depaneling?

Feel free to leave a comment and discuss with us.

I’m Fiona, and I’m always happy to help with SMT and PCB depaneling solutions.
